include/c/urg_utils.h File Reference

URG sensor utility. More...

#include "urg_sensor.h"

Go to the source code of this file.

Functions
const char *	urg_error (const urg_t *urg)
	Returns the string message for the last URG error.
void	urg_distance_min_max (const urg_t *urg, long *min_distance, long *max_distance)
	Obtains the minimum and maximum distance values from sensor measurements.
void	urg_step_min_max (const urg_t *urg, int *min_step, int *max_step)
	Gets the minimum and maximum step numbers.
long	urg_scan_usec (const urg_t *urg)
	Returns the time [usec] for 1 scan.
int	urg_max_data_size (const urg_t *urg)
	Returns the maximum size of data received from the sensor.
double	urg_index2rad (const urg_t *urg, int index)
	Converts index to angle in radians.
double	urg_index2deg (const urg_t *urg, int index)
	Converts index to angle in degrees.
int	urg_rad2index (const urg_t *urg, double radian)
	Converts angle in radians to index.
int	urg_deg2index (const urg_t *urg, double degree)
	Converts angle in degrees to index.
int	urg_rad2step (const urg_t *urg, double radian)
	Converts angle in radians to step number.
int	urg_deg2step (const urg_t *urg, double degree)
	Converts angle in degrees to step number.
double	urg_step2rad (const urg_t *urg, int step)
	Converts step number to angle in radians.
double	urg_step2deg (const urg_t *urg, int step)
	Converts step number to angle in degrees.
int	urg_step2index (const urg_t *urg, int step)
	Converts step number to index.

---

Detailed Description

URG sensor utility.

Author:

Satofumi KAMIMURA

Id:

urg_utils.h,v e5d1719877a2 2015/05/07 04:12:14 jun

---

Function Documentation

void urg_distance_min_max	(	const urg_t *	urg,
		long *	min_distance,
		long *	max_distance
	)

Obtains the minimum and maximum distance values from sensor measurements.

 \param[in] urg URG control structure
 \param[out] min_distance minimum distance [mm]
 \param[out] max_distance maximum distance [mm]


 Example

      long min_distance, max_distance;
      urg_distance_min_max(&urg, &min_distance, &max_distance);

      for (int i = 0; i < n; ++i) {
      long distance = data[i];
      if ((distance < min_distance) || (distance > max_distance)) {
      continue;
      }
      ...
      }

Examples:

calculate_xy.c, get_distance.c, and sensor_parameter.c.

const char* urg_error

(

const urg_t *

urg

)

Returns the string message for the last URG error.

 \param[in] urg URG control structure

 \retval String message for the last URG error


 Example

      if (!urg_open(&urg, "/dev/ttyACM0", 115200, URG_SERIAL)) {
      printf("urg_open: %s\n", urg_error(&urg));
      return -1;
      }

Examples:

calculate_xy.c, get_distance.c, get_distance_intensity.c, get_multiecho.c, get_multiecho_intensity.c, and sync_time_stamp.c.

double urg_index2rad	(	const urg_t *	urg,
		int	index
	)

Converts index to angle in radians.

 Index is the position of each measurement data in the array returned using urg_get_distance().
 This function applies to the last array of measurement data read from the sensor.

 \param[in] urg URG control structure
 \param[in] index index value

 \return Angle [radian]

 The index value depends on the start/end steps configuration used for measurement.

 \image html sensor_index_image.png shows the relation between start/end step configuration and index


 Example

      int n = urg_get_distance(&urg, data, NULL);
      for (int i = 0; i < n; ++i) {
      long distance = data[i];
      double radian = urg_index2rad(i);
      double x = distance * cos(radian);
      double y = distance * sin(radian);
      printf("%.1f, %.1f\n", x, y);
      }

See also:

urg_index2deg(), urg_rad2index(), urg_deg2index()

Examples:

calculate_xy.c, and get_distance.c.

int urg_rad2step	(	const urg_t *	urg,
		double	radian
	)

Converts angle in radians to step number.

Conversion to angle (radian) is performed according to the min/max step definition using urg_step_min_max().

Parameters:

[in]	urg	URG control structure
[in]	radian	angle [radian]

Returns:

step value

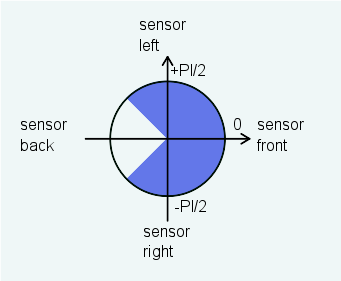

shows the relation between steps and angles

When the conversion from angle to step results on a fractional number, the value is rounded down towards zero (floor).

  \see urg_step_min_max(), urg_deg2step(), urg_step2rad(), urg_step2deg()

void urg_step_min_max	(	const urg_t *	urg,
		int *	min_step,
		int *	max_step
	)

Gets the minimum and maximum step numbers.

 Returns the minimum step and maximum step values as configured using urg_set_scanning_parameter()

 \param[in] urg URG control structure
 \param[out] min_step minimum step
 \param[out] max_step maximum step

 As seen from the top of the sensor: the frontal step is 0, going counter-clockwise are positive values, going clockwise are negative values.

 \image html sensor_step_image.png shows the relation between sensor and steps

 The actual values for min_step, max_step change with sensor type/series.


 Example

      urg_step_min_max(&urg, &min_step, &max_step);

      printf("range first: %d [deg]\n", urg_step2deg(&urg, min_step));
      printf("range last : %d [deg]\n", urg_step2deg(&urg, max_step));

See also:

urg_set_scanning_parameter(), urg_step2rad(), urg_step2deg()

Examples:

angle_convert_test.c, and sensor_parameter.c.
